EP-Dry Ridge

320mm wide ridge roll guarantees excellent coverage at any pitch, Ridge roll provides 5000mm2/m of ventilation per linear metre, RAL 7021 ridge roll creates a seamless finish

Self-adhesive butyl strip provides a high quality, water tight seal, Universal ridge unions are compatible with almost all half round and angled ridge tiles, Stainless steel clamping plates for a more secure finish, Simple installation is easier and quicker than mortar alternatives, Vapour permeable,  Wind and water resistant. 320mm roll width x 6 metre length provides a minimum 75mm lap over the top of the highest tile/slate course

Perfect for Concrete and clay ridge tiles, Most slate and tile profiles.

The pack Contains:

• 6 meters x 320mm Ventilated Ridge Roll providing 5000mm2/m airflow per linear meter
• 10 x Batten Support Brackets
• 13 x Ridge Unions
• 13 x 100mm x 5g Stainless Steel Fixing Screws
• 13 x Stainless Steel Clamping Plates
• 26 x Plastic Clamping Clips
• Ridge Unions, Screws, Clips and Clamping Plates all sold as separate maintenance kits.

Dry Ridge Maintenance Kits:

• 10 x Ridge Unions
• 10 x Metal Clamping Plates
• 20 x Plastic Clamping Plates
• 10 x Stainless Steel Ridge Fixing Screw

Dry Hip System

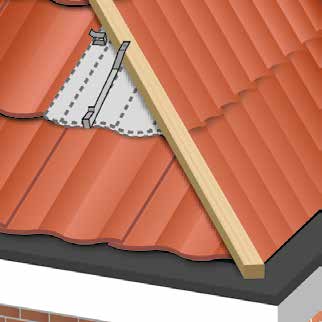

The Universal Hip Support Tray has been designed to support hip tiles along the hip line of the roof, without the need for mixing and carrying mortar to bed down the cut hip tiles.

This provides a neat and level hip line when fixing the dry hip ridge tiles into position. The Hip Support Tray is a Dry Fix Product, and provides a secure and discreet solution once installed, and does not detract from the aesthetics of the roof.

• Size
  1200mm Long
• Material
  Re-constituted pvc

• Pack Size
  20 Per Pack, 300 Per Pallet, 500 Per Pallet, 1000 Per Pallet
• Product Code
  EP-HIP
• Benefits
  Lightweight, quick & easy to install, durable, A Dry Fix product, no need for mortar.

Hip Clips

They are designed to secure cut tiles on the hip, which then have no mechanical fixing. Hip Clips come in packs of 20 Large clips & 20 Small clips

The roof is tiled on both sides of the hip as normal. Smaller cuts of tiles are secured by using our recommended Hip Clips.

Dry Ridge Accessories

• 6 Meter Ridge Roll
• Maintenance Kit (For Ridges with 300mm Clay Tiles)
• Metal Centre Clamps
• Small Side Clips
• Ridge Unions
• Stainless Steel screws & Washers
