Eaves & Ventilation

Eaves Ventilation

To comply with building regulations (approved document F2) all newly built properties must have continuous ventilation at eaves level to avoid damp and condensation within the roof void.

The 10mm and 25mm continuous Over Fascia Vents have a low profile design for minimum disruption to the eaves detail. Once installed, and almost undetectable, they still allow a continuous 10mm & 25mm air gap, when fitted on top edge of the fascia board. The 10mm vent is suitable for for conventional cold roofs. The 25mm vent is suitable for warm roofs, flat roofs and roof pitches below 15deg

• Size
  1000mm long, 21mm high, (10mm OFV) 1000mm long, 32mm high, (25mm OFV)
• Material
  Co-Polymer Polypropylene
• Pack Size
  10mm – 60 per box, 25mm – 50 per box
• Product Code
  10mm: EP-OFV10, 25mm: • EP-OFV25
• Benefits
  Low profile design, lightweight, 4mm integral grill, fixing location holes., Extremely strong, resists the weight of tiles

Eaves Protection

Creates a barrier against birds and large insects.

It prevents them entering the void between the underside of Profiled Tiles and the underlay on pitched roofs. Injection moulded from high-quality, low-density polyethylene.

Its flexibility prevents any alignment problems. Manufactured in 1.0mtr strips, which is effective, quick and easy to fit. Durable and totally resistant to decay.

• Size
  1000mm long, 55mm deep
• Material
  Low density polyethylene
• Pack Size
  300 per box (supplied in split packs of 100)
• Product Code
  EP-BC
• Benefits
  Convenient 1mtr lengths, quick & easy to fit

Eaves Ventilation

The Disc Soffit Vent is designed to provide ventilation

It does so through new or existing soffit boards, whilst preventing entry of insects with the use of a 4mm grid.

• Size
  70mm diameter
• Material
  Polypropylene (UV Stabilised)
• Pack Size
  100 per box
• Product Code
  EP-DSV
• Colors
  White, Black & Brown

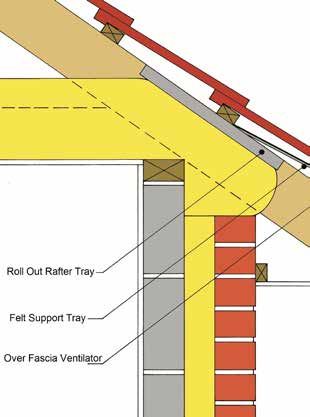

Eaves Ventilation

Many of the present continuous type roll panel ventilators are susceptible to collapse when installed due to their manufacturing method, box-like shape and poor design characteristics.

The European Plastics Roll Panel Ventilator has been designed with better rigidity, to avoid collapsing when installed over the insulation. The robust sinusoidal shape of the ribs provides additional strength and ensures that when fitted over the wall plate, the ventilation to the roof space remains unobstructed.

The new widths also ensure that when fitted with the new higher levels of insulation, the ends of the ventilators are not blocked. The Roll Out Trays will provide a clear ventilation channel above the loft insulation, and provides continuous ventilation when installed along the whole length of the eaves.

• Width
  300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm
• Length
  6mtr Roll
• Pack Size
  5 rolls per Box
• Material
  Black pvc
• Product Code
  EP-RR
• Benefits
  Universal Rafter Fitting, Lightweight, Durable, Reduces the risk of cold bridging

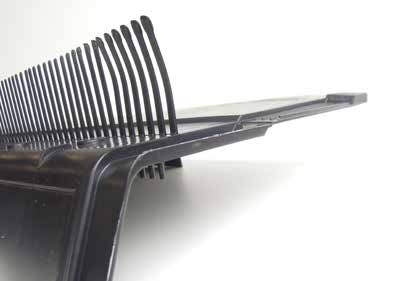

OVEP 2 in 1 & 3 in 1 Eaves Tray

A further development of eaves protection comes in the form of the innovative ‘one-piece’ eaves protector combined with an integrated over fascia ventilator and bird comb.

The ‘one-fix’ system is provided by an upstand on the underside of the eaves protector, which sits on the top edge of the fascia board, which is supplied with a 10mm continuous vent. Known as a ‘2 in 1’ System, used with Flat Tiles and Slates.

The provision of a fixed bird comb creates an effective barrier against birds and large insects, which is known as a ‘3 in 1’ System, used with all Profiled tiles.

• Size
  1000mm long x 200mm cover width
• Material
  UV stable polypropylene, 100% re-processed
• Pack Size
  2 in 1 Eaves Tray: 40 Per Box, 480 Per Pallet.  3 in 1 Eaves Tray: 20 Per Box, 240 Per Pallet.
• Regulations
  NHBC requirements: Complies with BS5250: 2002
• Product Code
  EPOVEP2/1 , EPOVEP3/1
• Benefits
  Combined Vent and Felt Support Tray, Strong, Durable, 15 year guarantee, Suitable between 15 & 70 deg. pitch

Also available in Single Rolls

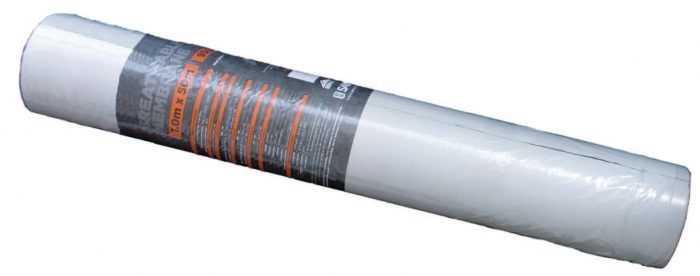

European Plastics breathable membrane

Is both airtight and vapour permeable that is suitable for many applications such fully supported or unsupported installations for tiles or slate on pitch roofs, warm and cold roof applications, timber and metal frame construction, as well as Scottish sarking boards.

• BBA certified
• Vapour permeable
• Waterproof membrane
• UV stable for 3 months
• Resistance to extreme temperatures
• Conforms to BS 5534.2014 Annex A
